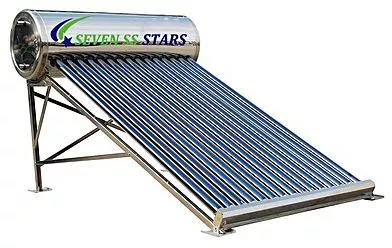

SS Pressurized Tube Solar Water Heater

Price range: KSh 110,500.00 through KSh 160,500.00

Stars Solar Water Heaters are popular high-quality solar water Heaters. They are made to last longer and are highly adaptive to both fresh and borehole water. They come with an inner tank made of stainless steel to work with the rising use of borehole water.  For this pressurized system, pressure-in is equal to pressure-out.  Pressure must be below 5 Bars.

Quick info
SKU: N/A
Category:
Tags: ,

Description

150ltr Solar Water Heater Technical Data

Tank Outer Tank  Material: 0.4mm SUS304-2B stainless steelDiameter: 420mm/460mm/480mm
InnerTank  Material: SUS304-2B stainless steel pressure Rating: 5 Bars.

Diameter and Thickness:310mm/360mm/380mm(0.40/0.58mm)
Insulation Layer  50/55/60mm high-density polyurethane foam
Solar Collector Material: three target tubes (SS/CU/AL-coating)Size: Φ47x1500mm/Φ58×1800mm

No of Tubes: 15 Pieces, Heat Pipes
Support Frame Material:1.5mm import heat zinc steel plate installation angle: 27°, 38°, 45°



 200 Ltr Solar Water Heater Technical Data

Tank Outer Tank  Material: 0.4mm SUS304-2B stainless steelDiameter: 420mm/460mm/480mm
InnerTank  Material: SUS304-2B stainless steelPressure Rating: 5 Bars.

Diameter and Thickness:310mm/360mm/380mm(0.40/0.58mm)
Insulation Layer  50/55/60mm high-density polyurethane foam
Solar Collector Material: three target tubes (SS/CU/AL-coating)Size: Φ47x1500mm/Φ58×1800mm

No of Tubes: 20 Pieces, Heat Pipes
Support Frame Material:1.5mm import heat zinc steel plateInstallation angle: 27°, 38°, 45°



300 Ltr Solar Water Heater Technical Data

Tank Outer Tank  Material: 0.4mm SUS304-2B stainless steelDiameter: 420mm/460mm/480mm
InnerTank  Material: SUS304-2B stainless steelDiameter and Thickness:310mm/360mm/380mm(0.40/0.58mm)
Insulation Layer  50/55/60mm high-density polyurethane foam
Solar Collector Material: Heat-Pipe Evacuated Vacuum tube(SS/CU/AL-coating)Size: Φ47x1500mm/Φ58×1800mm

No of tubes: 30 Pieces
Support Frame Material:1.5mm import heat zinc steel plateInstallation angle: 27°, 38°, 45°

Additional information

Liters

150Ltr, 200Ltr, 300Ltr
